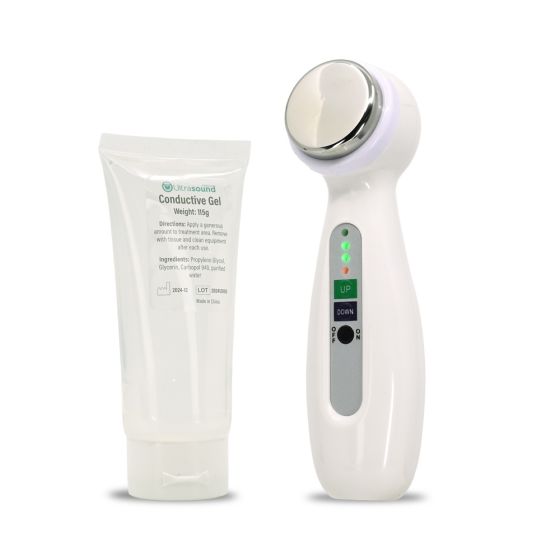

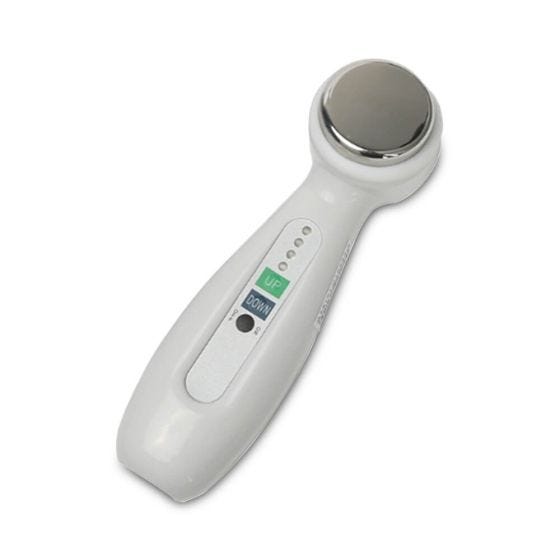

PMT Portable Ultrasound Device PM3000
The PM3000 ultrasound therapy device creates high frequency sound waves to relieve pain and stimulate healing. Utilizing a piezoelectric crystal sound head, it generates deep-penetrating heat within body tissue to relieve pain and inflammation, increase range of motion, reduce muscle spasms, and accelerate the healing process of many common injuries. Lightweight, portable, and easy to handle, this is unit is ideal for your treatment room, mobile services, or at-home use by patients. The 29 mm diameter head easily accommodates most areas of the body. Includes AC adapter, ultrasound gel, and manual.
Warranty: 1 year, limited
• Relieves pain and inflammation
• Improves range of motion
• Reduces muscle spasms
• Stimulates the healing process of many common injuries
• Ideal for treatment rooms, mobile services, or at-home use by patients
• Includes AC adapter, ultrasound gel, and manual
Technical Specifications
Frequency: 1MHz +/- 10%
Pulse Width: 2ms +/- 10%
Repetition Rate: 150Hz +/- 10%
Wave Shape: Pulsed
Temporal maximum
power: 4W +/- 10%
Temporal maximum effective intensity: 1.57 W/cm2 +/- 10%
Effective maximum effective intensity/ Effective average effective intensity: 1.57/0.47 = 3.34
ERA: 6.16 square centimeter +/- 5%
BNA: 5.6 max
Auto-time setting: 30 minutes +/- 1 minute
Output intensity: low, medium and high
Power: AC Adaptor (DC 24V/200mA)
Size of main unit: 172mm(L) x 54mm(W) x 42mm(H)
Weight of main unit: 120gm
