ITO® ES-160 6 Channel Professional Electro-Therapy Device

$949.00

In stock

SKU

Ito.ES.160

Buy 2 for $901.55 each and save 5%

Best Seller

6 Channel Device from Japan

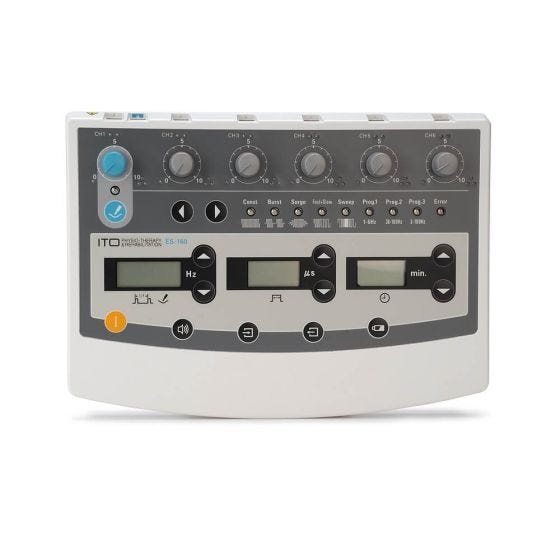

The ITO® ES-160 is the latest, most advanced 6 channel stimulator device from Japan. Compact, attractive, lightweight, sturdy, and desk size. Provides 8 stimulation modes, saves 5 previous treatment parameters, and incorporates 16 programmable memory settings.

Three LCD displays (0.6" x 1.4" and 0.6" x 1.1") show point search sensitivity, frequency (Hz), pulse width (µs), program modes, memory data, treatment time (minutes), and battery life.

The hand probe includes a search-to-treat push button selector on the probe itself. Point location is indicated on the LCD display and is regulated with the sensitivity dial. Also allows measurement and storage of Ryodoraku points (6, 12, or 21 volts).

Safety features include self-test, zero start, automatic power-off if unit is left unused for 5 minutes, sound on/off function, emergency stop button, tone signaling end of treatment, and high/low (H/L) switch on side of unit.

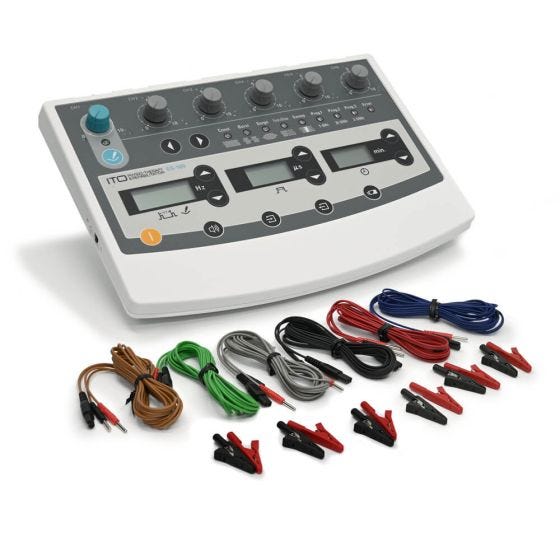

Accessories include search/stimulation probe, 6 electrode cords (assorted colors), 12 alligator clip-on (6 red/6 black), and operation manual. Requires (4) C batteries (not included).

Note: Replacement wires and alligator clips also sold separately.

Warranty: 1 year, excludes wires and clips

Caution: Federal law restricts this device to sale by or on the order of a physician or other licensed practitioner.

Specifications	500 ohm test load
Output Channels:	6 (stimulates 12 points)
Volts and current: Low (L switch) High (H switch) Pen probe	0-8 volts, 0-16 mA (milliamp) 0-16 volts, 0-32 mA 0-24 volts, 0-48 mA
Pulse shape:	symmetric biphasic square wave
Pulse width:	50-400 microseconds (µS), adjustable
Pulse mode/frequency: Constant Burst Surge Fast-Slow Sweep Random program 1 Random program 2 Random program 3	0.5 * 0.7 * 1-500 Hz 0.5 * 0.7 * 1-7 bursts (carrier frequency 100 Hz) on time 4 seconds, off time 6 seconds (carrier frequency 5-500 Hz) 1-500 Hz (slow=fast frequency/3) 1-500 Hz (slow=fast frequency/3) 1-6 Hz, preset program 30-100 Hz, preset program 2-100 Hz, preset program
Timer:	0-60 minutes
Skin impedance monitoring:	LCD meter (0-200 scale) with sound on/off function
Power source:	4 standard 1.5 volt C batteries (meter displays battery life)
Frequency indicator:	LCD meter with sound on/off
Size, weight:	9.4" x 6.8" x 2.0", 560 grams

Company Profile

Since the founding of the company ITO in 1916, based on the clear vision of founder Kenji Ito, the company has made constant progress in electrophysical agents during its prestige history stretching over 100 years. ITO’s electrotherapy devices have earned a strong reputation for high technology, effectiveness, and usability, a reputation rooted from the company’s focus on contributing to society rather than mere sales results—another legacy dating from the time of ITO’s founder. In its essence, electrophysical agents involves not just technical capabilities, but establishing an approach founded on evidence-based medicine (EBM). For this reason, through ongoing joint collaborative research projects with universities and research institutions, ITO has assisted in the process of verifying evidence for the efficacy of intervention with electrophysical agents. These conducts represent the foundations of ITO’s vision in mastering therapeutic interventions via electrophysical agents and is a key element in the support ITO provides not just to medical institutions, but to the health of consumers and conditioning efforts among athletes. Within an aging society, the boundaries of ITO’s activities is expected to continue expanding, based on its foothold in medical related fields in which it has already achieved significant expertise in. ITO plans to continue pursuing research efforts to ensure comprehensive reliability and quality controls for its products and to develop new domains for electrophysical agents.
