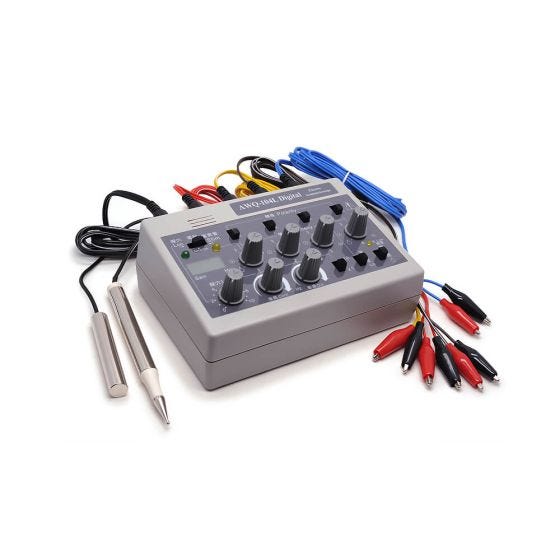

The AWQ-104L is able to display and fine tune frequency selection through two separate ranges: 1 to 100 Hz (low) and 10 to 1,000 Hz (High).
Unit also features: 4 independently controlled output channels which provide stimulation to 8 needles, polarity reversal [i.e. tonification (+) and sedation (-)] switches for each channel, Hi/Low voltage switch, and 2 frequency ranges (X1, X10). New integrated circuitry assures no interference or crossover.
Powered by 9 volt battery. Three adjustable pulse modes are also offered: continuous, intermittent (discontinuous), and dense-disperse.
Accessories include 5" long pen shaped treatment probe with hand ground pole and wire, 4 sets of alligator clip wires, sturdy carrying case, and instructions. 1 year warranty from date of purchase. Uses 9 volt battery (not included).
Warranty: 1 year, unit only
9V Battery not included.
|Specifications||500 ohm test load|
|Output Channels:||5 (1 hand probe, 4 intensity channels)|
LCD, 0.5" x 0.9"
|Frequency light||green LED light|
Volts and current:
0-9 volts, 0-18 mA (milliamp)
0-20 volts, 0-40 mA
320 microseconds (µS)
32 microseconds (µS)
|Pulse shape:||asymmetric biphasic square wave with negative spike|
|Pulse mode:||continuous, intermittent (discontinuous), or dense-disperse (rate modulation)|
|Skin impedance monitoring:||meter displays value 1-100 or 150|
|Polarity Reversal:||+/- switches for each channel|
|Power source:||one 9 volt battery|
|Low power indication:||yellow LED light|
|Size, weight, color:||6" x 4.2" x 2.2", 330 grams, gray|
