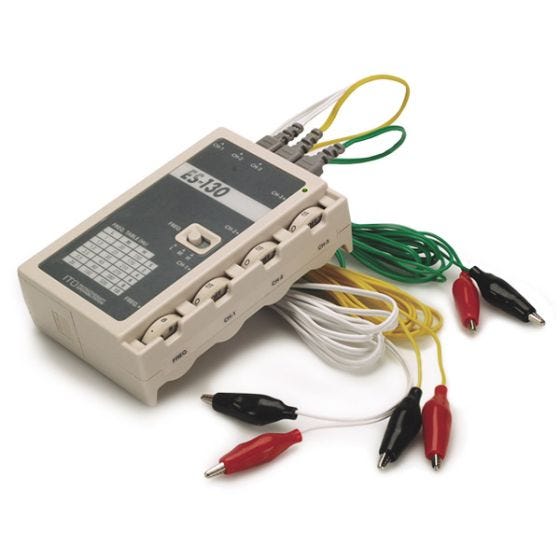

With its fresh new look, the ES-130® is a compact, sturdy, high quality Japanese electro-therapy device that is light weight and fits in the palm of your hand. Featuring a High/Low switch on the back of the unit, the switch is toggled to Low to facilitate use with needles or to High for MEA electro-therapy. It offers three independently controlled output channels with adjustable frequency indicated by a flashing light. The waveform is a unique biphasic pulse which has been designed to minimize electrolysis damage to the needle.
The pocket portable ES-130 is the smallest and smartest looking professional electro-therapy unit in the world, for use in or out of the office. This unit is not equipped with a point locator.
Accessories include 3 sets of new CE wire leads with rectangular CE jack, carrying case, and instructions. Does not include battery.
Warranty: 1 year, unit only
Intro to Electro-Acupuncture Medicine featuring Dr. Jeremy Steiner
Treating Heart Disease with Electro-Acupuncture Medicine featuring Dr. Jeremy Steiner
|Specifications||500 ohm test load|
|Output Channels:||3 independent intensity channels|
|Frequency (adjusted with the fine frequency dial):||L - 1-20 Hz
M - 20-150 Hz
H - 150-500 Hz
|Low volts and current:||0-10 volts, 0-20 milliamps|
|High volts and current:||0-20 volts, 0-40 milliamps|
|Voltage, max:||30 volts|
|Pulse width:||100 microseconds (µS)|
|Pulse shape:||asymmetric biphasic square wave|
|Pulse modes:||continuous||Power source:||9 volt battery|
|Frequency indicator:||flashing red light|
|Size, weight, color:||4.5" x 3.2" x 1.2", 0.3 lbs., Gray|
